Ui & Plot

Vulkan-native presentation without a second graphics framework.

OA Ui is the retained command layer over oa::Renderer. oa::Viewer presents images and video interactively; oa::plot builds composable figures and renders the same result to a semantic oa::Image for display, documentation, or headless automation.

C++ / Python parityGPU compositorInteractive + headless

Oa Plot module interface with data layers and analysis views

One renderer, semantic front ends

oa::Renderer

The low-level Vulkan rendering service. Ui and Plot submit retained draw commands to it; there is no separate Ui renderer.

oa::Viewer

Interactive image and video presentation with playback, scrubbing, live-source updates, and a headless path for automated runs.

oa::plot

Figures, axes, lines, scatter, bars, histograms, heatmaps, legends, labels, themes, and projected scalar-field wireframes.

oa::Image output

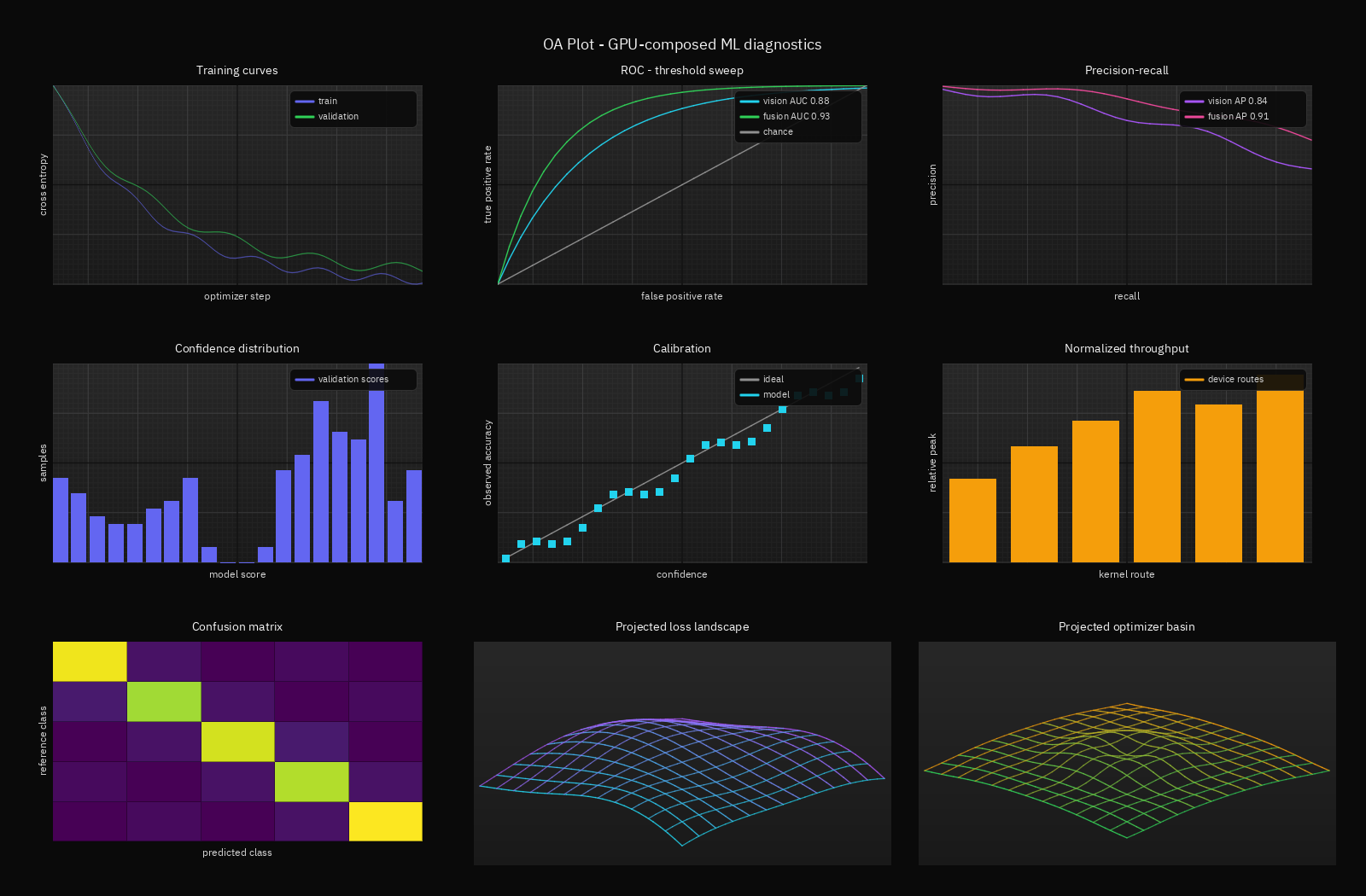

Figure::render produces a semantic RGBA image. saveTo and show are presentation choices over the same retained figure.

The same figure in C++ and Python

This source is extracted during documentation generation from the paired executable gallery tutorials. The complete files contain the shared style helpers and produce the image above; the developer site rejects stale snippets or assets.

1oa::plot::Figure introFigure() {
2	oa::plot::Figure figure({
3		.title = "OA Plot intro",
4		.rows = 1,
5		.cols = 2,
6		.width = 1280U,
7		.height = 560U,
8		.hSpacing = 36,
9		.padding = 34,
10		.theme = oa::plot::Theme::Dark,
11	});
12	figure.title("One retained figure - C++ and Python parity");
13
14	constexpr oa::Array<oa::F32, 8> steps{
15		0.0F, 1.0F, 2.0F, 3.0F, 4.0F, 5.0F, 6.0F, 7.0F};
16	constexpr oa::Array<oa::F32, 8> train{
17		1.00F, 0.78F, 0.61F, 0.48F, 0.37F, 0.29F, 0.23F, 0.19F};
18	constexpr oa::Array<oa::F32, 8> validation{
19		1.04F, 0.83F, 0.66F, 0.53F, 0.43F, 0.35F, 0.30F, 0.27F};
20	constexpr oa::Array<oa::F32, 5> ideal{
21		0.0F, 0.25F, 0.50F, 0.75F, 1.0F};
22	constexpr oa::Array<oa::F32, 5> confidence{
23		0.10F, 0.30F, 0.50F, 0.70F, 0.90F};
24	constexpr oa::Array<oa::F32, 5> accuracy{
25		0.08F, 0.34F, 0.47F, 0.74F, 0.88F};
26
27	auto& curves = figure.ax(0, 0);
28	curves.title("training curves");
29	curves.xLabel("optimizer step");
30	curves.yLabel("cross entropy");
31	curves.limits(0.0F, 7.0F, 0.0F, 1.1F);
32	curves.plot(steps, train,
33		{.color = oa::Color::accent(), .label = "train", .width = 1.6F});
34	curves.plot(steps, validation,
35		{.color = oa::Color::success(), .label = "validation", .width = 1.6F});
36
37	auto& quality = figure.ax(0, 1);
38	quality.title("Calibration");
39	quality.xLabel("confidence");
40	quality.yLabel("observed accuracy");
41	quality.limits(0.0F, 1.0F, 0.0F, 1.0F);
42	quality.plot(ideal, ideal,
43		{.color = oa::Color{0.565F, 0.565F, 0.565F, 1.0F},
44		 .label = "ideal"});
45	quality.scatter(confidence, accuracy,
46		{.color = oa::Color::cyan(), .label = "model", .radius = 3.5F});
47	return figure;
48}
49

Current surface

Layer	Contract
Figure	Fixed output size, theme, grid layout, spacing, padding, labels, render, saveTo, and show
Axes	plot, scatter, bar, histogram, heatmap, imshow, limits, grid, legend, title, labels, caption, and border color
